ISO 13485 Precision Turning for Medical Device Components
What is ISO 13485 Precision Turning?
ISO 13485 precision turning is a high-spec manufacturing process designed to create cylindrical parts for medical hardware under a strict Quality Management System (QMS). It bridges the gap between complex engineering designs and the stringent safety requirements of global healthcare regulators.
“ISO 13485:2016 specifies requirements for a quality management system where an organization needs to demonstrate its ability to provide medical devices and related services that consistently meet customer and applicable regulatory requirements.” — International Organization for Standardization
For medical device OEMs, this certification is more than a badge. It represents a commitment to risk management, documented traceability, and sterile-ready production environments.
The Safe-Trace™ 5-Point Protocol for Component Integrity
In our experience, standard manufacturing workflows often fail to address the specific nuances of life-critical parts. We have developed the Safe-Trace™ 5-Point Protocol to ensure every component leaving the lathe is audit-ready and patient-safe.
- 1. Raw Material Fingerprinting: Every bar of medical-grade alloy is verified via spectrometer to match its Mill Test Report (MTR).
- 2. In-Process Digital Monitoring: CNC sensors track tool wear in real-time to prevent dimensional drift before it occurs.

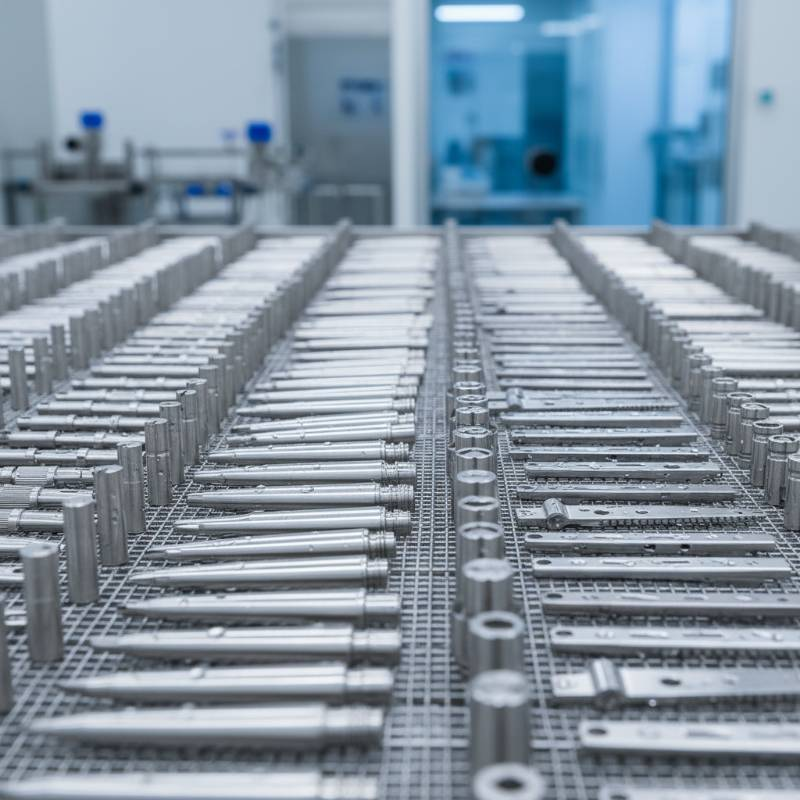

- 3. Ultrasonic Aqueous Cleaning: Removal of all machining oils and particulates using validated medical-grade detergents.

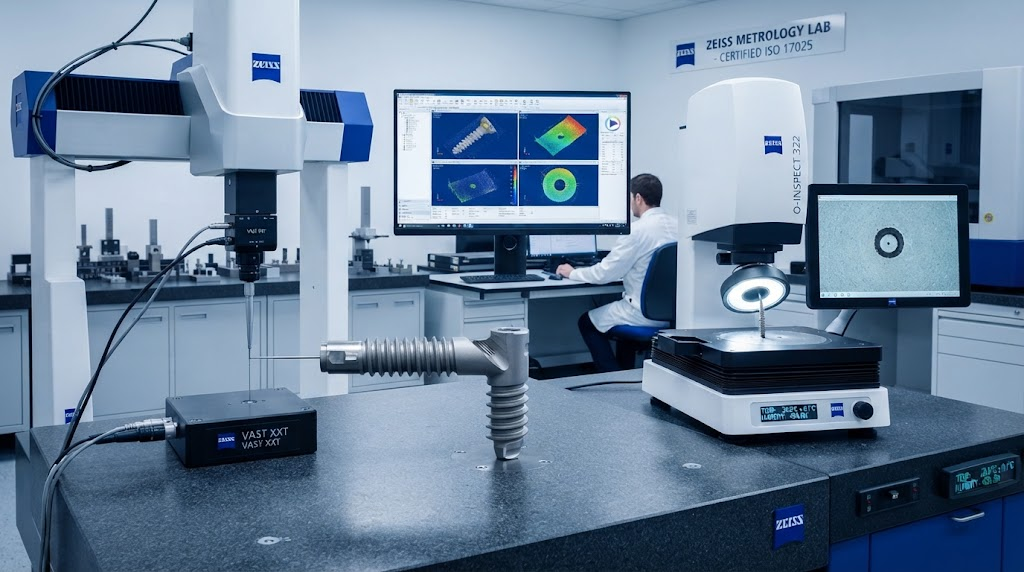

- 4. Non-Destructive Testing (NDT): Utilizing vision systems and laser micrometers for 100% inspection of critical-to-quality (CTQ) dimensions.
- 5. Immutable Batch Coding: Laser marking components with unique IDs that link back to the specific machine, operator, and material lot.
This methodology minimizes the risk of recalls and ensures that quality assurance engineers can provide full documentation for FDA or CE Mark submissions.

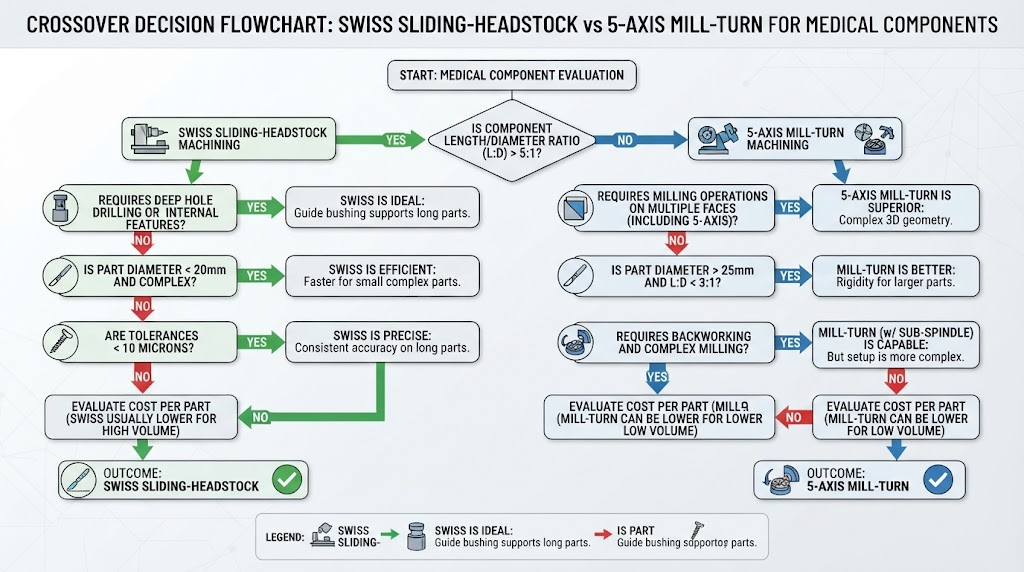

Swiss CNC vs. Traditional Turning: Choosing the Right Process
When dealing with ISO 13485 medical device precision turning components, the choice of machinery dictates both cost and capability. For components with a high length-to-diameter ratio, Swiss-style turning is the gold standard.
| Feature | Swiss CNC Turning | Traditional CNC Turning |
|---|---|---|

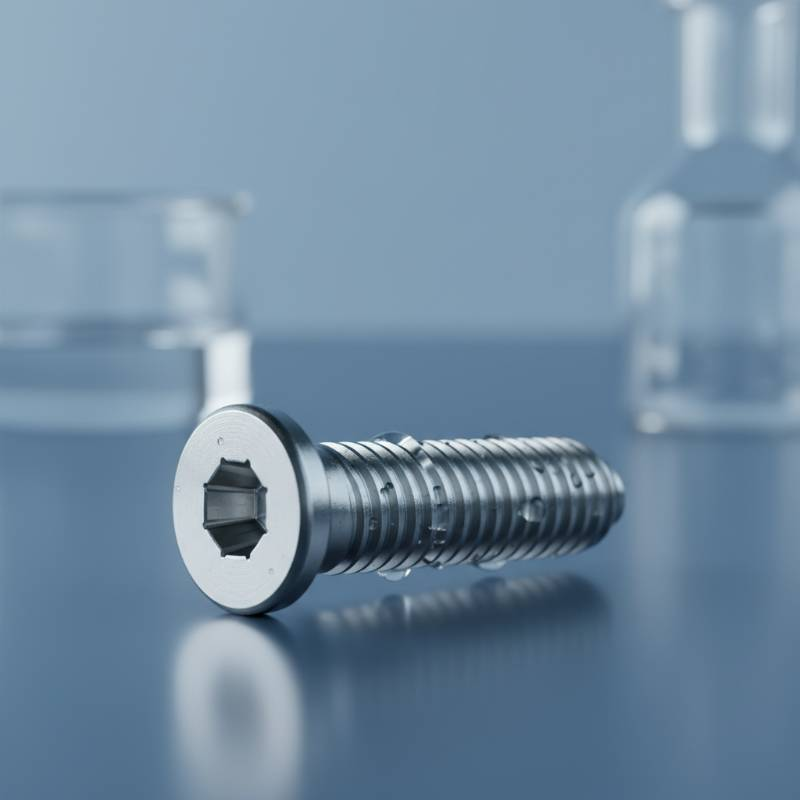

| Best Use Case | Small, long, complex parts (e.g., bone screws) | Larger, shorter components (e.g., housing) |
| Tolerance Range | Extremely tight (±0.0001″) | Tight (±0.0005″) |
| Micro-Machining | Excellent for parts <1mm diameter | Limited for micro-parts |
Swiss lathes utilize a guide bushing that supports the workpiece near the cutting tool, eliminating deflection. This is essential for micro-machining surgical tools that require high aspect ratios.
Biocompatible Material Matrix and Sterilization Compatibility
Material selection is the foundation of biocompatibility. We prioritize alloys and polymers that withstand aggressive sterilization cycles, including Autoclave, Gamma radiation, and ETO (Ethylene Oxide).
- Titanium (Grade 5 / Ti-6Al-4V ELI): Superior strength-to-weight ratio and excellent osseointegration for implants.
- Stainless Steel 316LVM: Low-carbon, vacuum-melted steel that offers maximum corrosion resistance for permanent implants.
- Medical Grade PEEK: A high-performance polymer used for radiolucent spinal cages and orthopedic trials.
- Cobalt Chrome (CoCr): Highly wear-resistant, ideal for joint replacement bearing surfaces.
Based on our data from 2026 production trends, there is a significant rise in the use of bio-absorbable polymers for temporary fixation devices. Understanding how these materials react to heat during the precision turning process is vital to maintaining their molecular integrity.

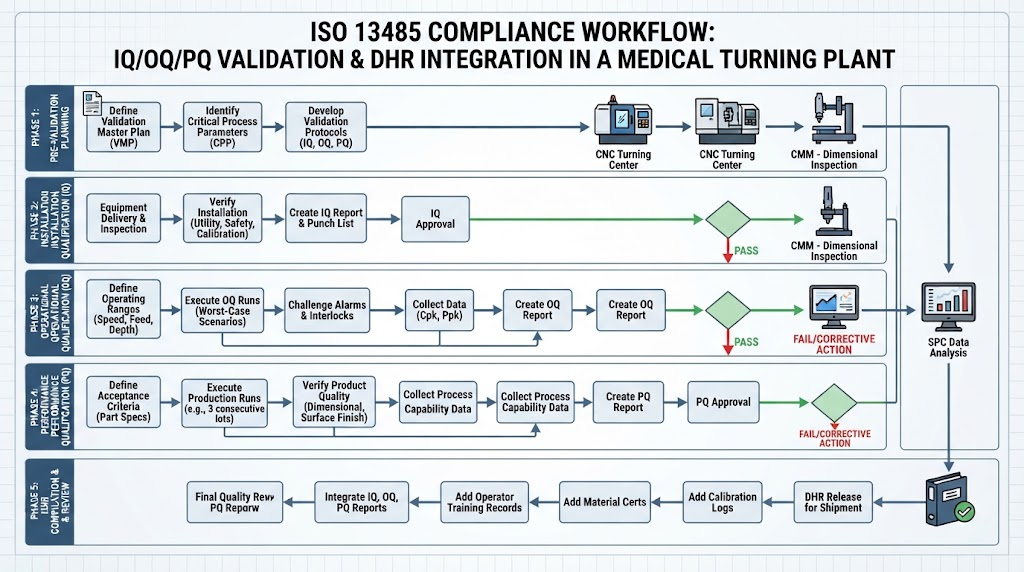

Validation Protocols: IQ, OQ, and PQ for Medical Parts
In medical manufacturing, a “good part” isn’t enough; you must prove the process is capable of producing that part every single time. This is achieved through the 3-stage validation lifecycle.
Installation Qualification (IQ)
We verify that the CNC equipment is installed according to manufacturer specifications and operates within the designated electrical and environmental parameters.
Operational Qualification (OQ)
This stage tests the “worst-case” scenarios. We run the equipment at its upper and lower operational limits to ensure the output remains within tolerance regardless of minor process fluctuations.
Performance Qualification (PQ)
PQ demonstrates that the process, under normal operating conditions, consistently produces components that meet all requirements for ISO 13485 medical device precision turning components.
Design for Manufacturability (DFM) in Medical Turning
Early collaboration between medical hardware designers and machinists can reduce unit costs by up to 30%. DFM focuses on optimizing part geometry to suit the turning process.
For instance, specifying a standard radius for internal corners allows for the use of off-the-shelf tooling, which reduces cycle times and tool breakage risks. Our engineering team provides detailed DFM feedback to help simplify complex features without compromising clinical function.
Sustainable Medical Supply Chains in 2026
In 2026, the medical industry has reached a tipping point where sustainability is a core procurement requirement. A green medical supply chain is no longer optional for global OEMs.
We focus on “Closed-Loop Machining,” where 100% of titanium and stainless steel scrap is reclaimed and recycled. Furthermore, the shift toward vegetable-based cutting fluids reduces the environmental footprint of our precision turning operations while maintaining the high surface finishes required for FDA-compliant hardware.
Frequently Asked Questions
What is the typical lead time for ISO 13485 components?
Prototypes can often be delivered in 1-2 weeks. Full production runs typically range from 4-8 weeks, depending on material availability and the complexity of the validation protocols required.
Do you provide full material traceability documentation?
Yes. Every shipment includes a comprehensive documentation package, including MTRs, Certificates of Conformance (CoC), and inspection reports as part of our audit-ready supplier commitment.
Can you handle micro-turning for parts under 0.5mm?
Our Swiss CNC capabilities allow us to machine components with diameters as small as 0.2mm, maintaining the high precision required for neurosurgical and ophthalmic applications.

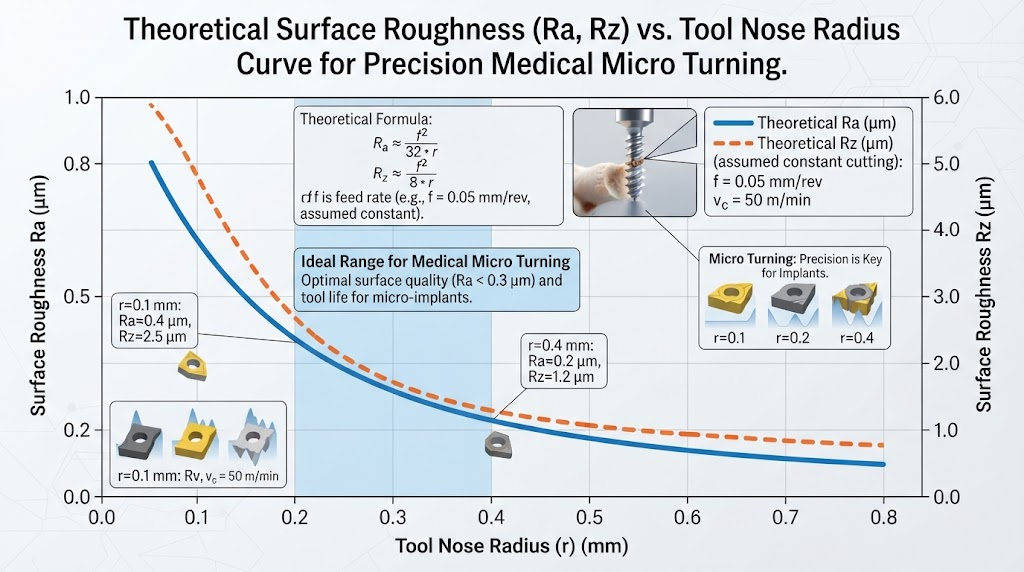

How do you ensure surface finish requirements are met?
We utilize profilometers to verify Ra (Roughness Average) values. For medical parts, we frequently achieve finishes of 0.4μm (16 micro-inch) or better, straight from the machine.
