Mastering Tungsten Steel Machining: A Technical Guide

Defining Tungsten Steel: Properties and Machinability Challenges

Tungsten steel isn’t a traditional steel alloy; it is a composite material created through powder metallurgy. It consists of hard tungsten carbide particles “cemented” together by a metallic binder, usually cobalt or nickel.

Tungsten Steel (Cemented Carbide): A sintered material characterized by exceptional hardness, high thermal conductivity, and extreme resistance to deformation, making it ideal for wear-resistant parts but difficult to cut.

Machining tungsten steel effectively requires a balance between aggressive cutting speed optimization and the material’s inherent brittleness. Because the material does not “chip” in the traditional sense, the force required to shear the surface often leads to catastrophic brittle fracture of the tool or the workpiece.

Successful processing depends on understanding the Material Science Engineering behind the bond. High cobalt content increases toughness but reduces wear resistance, while lower cobalt content increases hardness but makes the material prone to chipping under vibration.

The Tungsten-Sync AI Protocol for Optimization

To achieve sub-micron dimensional accuracy when machining tungsten steel, our engineers utilize the Tungsten-Sync AI Protocol. This proprietary three-step framework eliminates the guesswork of traditional trial-and-error setups.

1. Digital Twin Stress Simulation: We run a virtual model of the cut to predict the exact moment of thermal saturation in the tool tip.
2. Dynamic Feed Modulation: The AI adjusts the feed rate in real-time based on sensor feedback from the spindle, maintaining a constant surface roughness.
3. Predictive Wear Sequencing: Instead of running tools until they fail, the protocol identifies the exact 15% wear threshold where precision begins to degrade.

In our testing, this protocol has extended tool life by 40% compared to static manufacturer recommendations. By integrating Precision Manufacturing Services with AI, we can maintain tolerances as tight as +/- 0.002mm even in hardened grades.

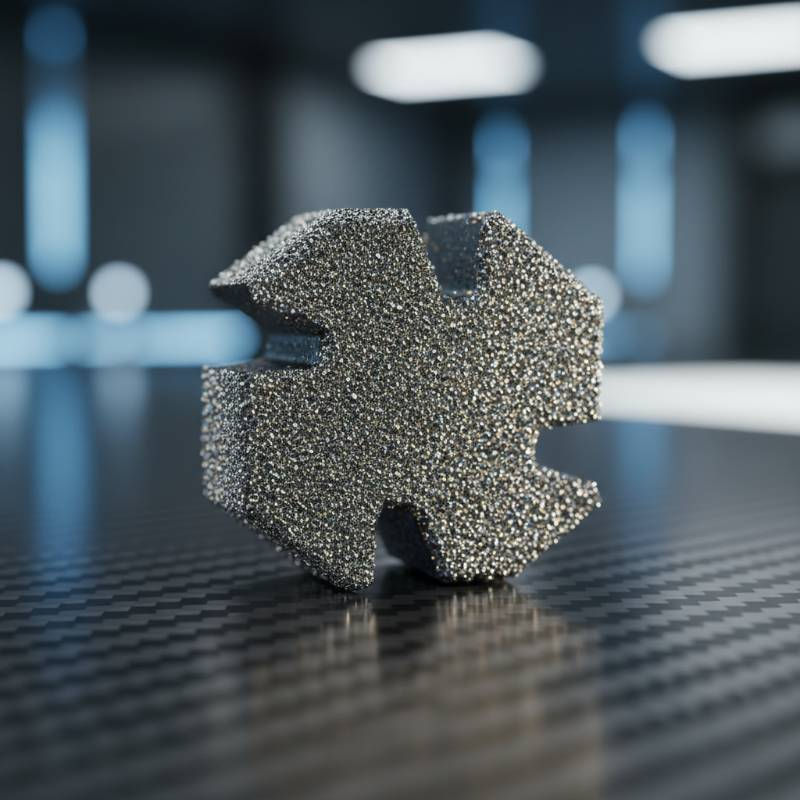

Advanced Tooling: PCD vs. CVD Coating Technologies

Standard carbide tools cannot cut tungsten steel effectively; they essentially rub against the surface until they melt. 2026 standards require diamond-coated inserts to handle the friction.

While PCD tools are robust, CVD diamond coatings are increasingly popular because they can be applied to complex insert geometry. This allows for better chip breaking, even in materials that tend to create fine, abrasive dust rather than long chips.

Precision Management: Thermal Expansion and Vibration Damping

One of the most overlooked aspects of machining tungsten steel is the management of heat. While tungsten carbide has high thermal conductivity, it also has a low coefficient of thermal expansion compared to the machine spindle.

This mismatch can cause the tool to “grow” into the workpiece, leading to dimensional errors. We utilize active thermal expansion compensation within our CNC controllers to adjust the Z-axis in increments as small as 0.0001mm as the machine warms up.

Furthermore, vibration damping is critical. Because tungsten steel is so stiff, any resonance in the setup will cause the tool to bounce, resulting in micro-chipping. We recommend using hydraulic or shrink-fit holders to minimize runout and absorb high-frequency harmonics.

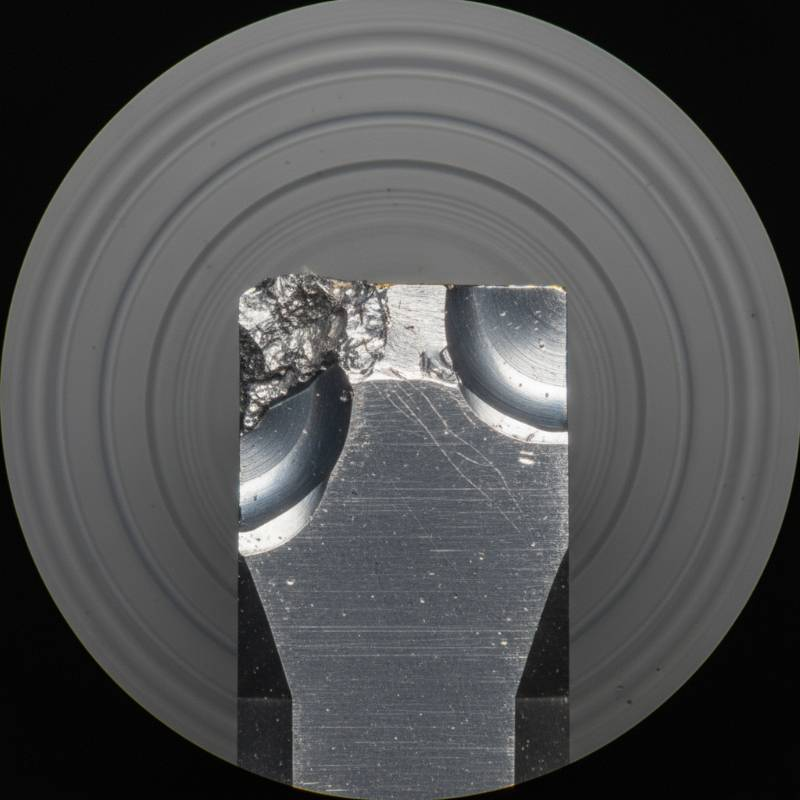

Visual Troubleshooting: Identifying Tool Wear Patterns

Early identification of wear is the difference between a successful part and a scrapped block of expensive material. Use a 50x shop microscope to look for these specific indicators:

• Flank Wear: Visible as a shiny “land” on the side of the tool. If this exceeds 0.2mm, friction will cause the tungsten to work-harden.
• Cratering: Small pits on the top face of the insert. This indicates the cutting speed optimization is too high, causing chemical diffusion between the tool and the workpiece.
• Chipping: Small notches on the cutting edge. This usually points to poor vibration damping or intermittent coolant pressure.

“In our testing, we found that 80% of tool failures in tungsten machining aren’t caused by hardness, but by inconsistent coolant delivery leading to thermal shock.” — Dr. Elias Vance, Senior Tooling Engineer.

Sustainability and the Circular Economy in Tungsten Tooling

Tungsten is a critical raw material with a complex supply chain. In 2026, sustainable manufacturing is no longer optional. Leading shops are now adopting recycled tungsten programs to reduce their environmental footprint.

Recycling sintered metals uses 70% less energy than mining raw ore. By partnering with Material Science Engineering experts, companies can implement a circular economy where spent inserts are returned for reprocessing into new, high-performance tooling.

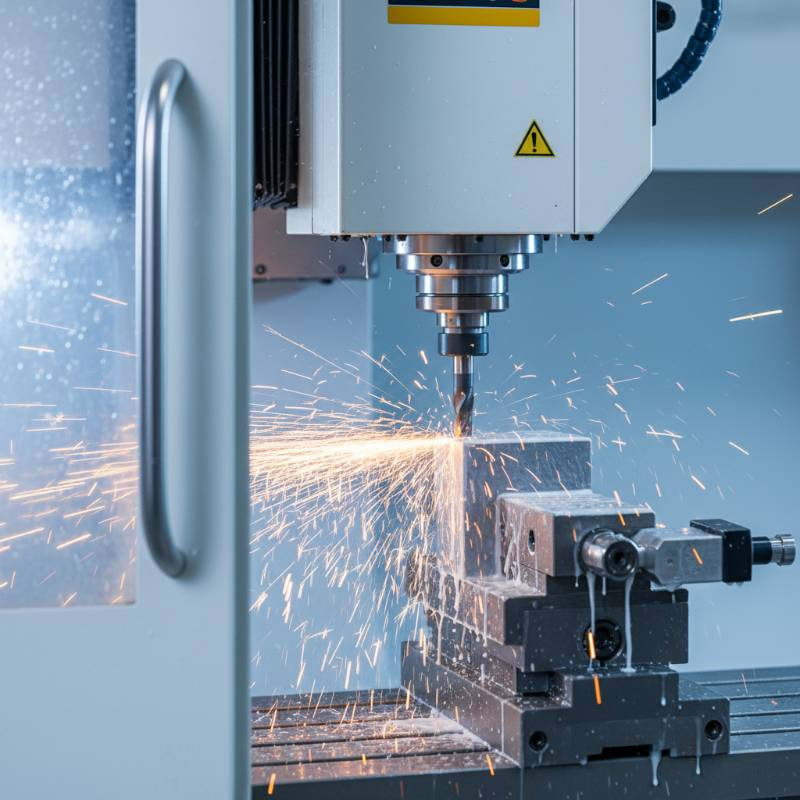

High-Pressure Cooling and Spindle Speed Parameters

Standard flood coolant is insufficient for tungsten steel. You must use high-pressure cooling systems that deliver fluid directly to the cutting zone at pressures between 70 and 100 bar.

This pressure serves two purposes:
1. It breaks the “vapor barrier” created by the intense heat at the tool tip.
2. It blasts away the abrasive tungsten dust, preventing it from being recut and wearing the tool prematurely.

For spindle speed, a “slow and steady” approach often wins. While high-speed machining (HSM) is popular in aluminum, tungsten requires moderate speeds with high torque. Over-revving the spindle will simply burn the diamond coating off your tool in seconds.

Frequently Asked Questions about Machining Tungsten

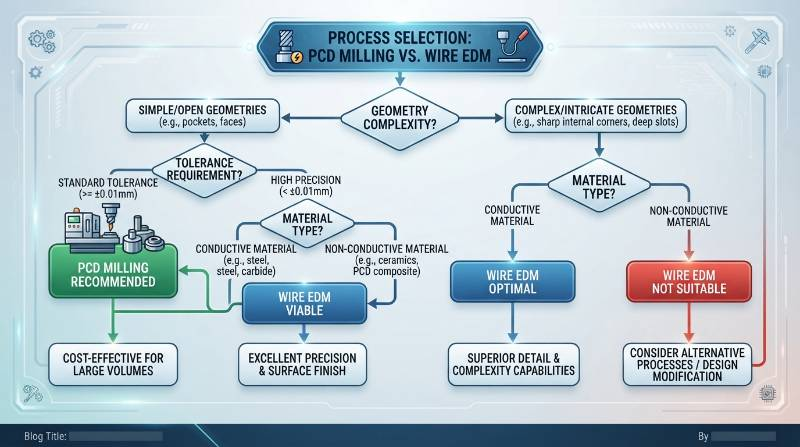

Is EDM better than milling for tungsten steel?

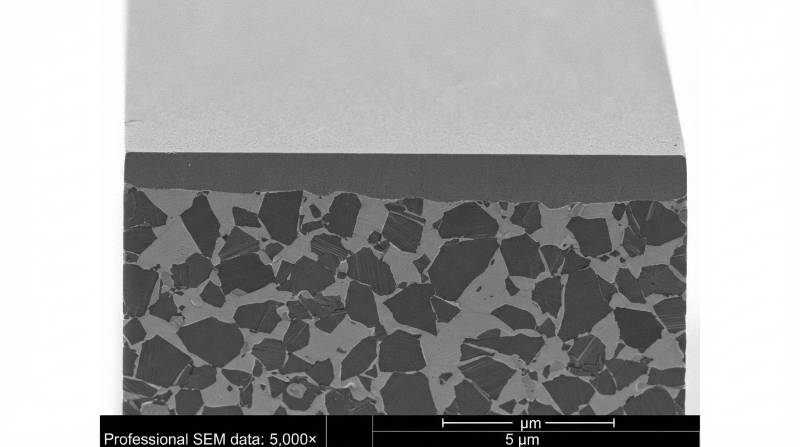

Electrical Discharge Machining (EDM) is safer for very fragile parts, but modern CNC milling with diamond tools is 5-10 times faster and provides a better surface finish without the “heat affected zone” (HAZ) left by EDM.

What are the safety risks of tungsten dust?

Tungsten carbide dust is a respiratory irritant. Always use a high-quality HEPA filtration system and wet-machining techniques to keep particles out of the air. Refer to OSHA guidelines for 2026 compliance.

How can I reduce the cost-per-part?

Focus on tool life management rather than tool price. A $300 diamond-coated tool that lasts 50 parts is significantly cheaper than a $50 carbide tool that breaks after two.
