5-Axis vs. 3+2 Machining: A 2026 Procurement Guide
The Tyneen Precision-to-Profit (P2P) Selection Matrix
Simultaneous 5-axis machining allows a tool to move across the X, Y, and Z linear axes while rotating on the A and B axes at the same time. In contrast, 3+2 axis machining executes a “position-and-lock” maneuver, where the rotary axes orient the part, but the actual cutting remains a 3-axis operation.
For aerospace procurement, the choice isn’t just about technical capability; it is about the Tyneen Precision-to-Profit (P2P) Selection Matrix. We developed this framework to evaluate if the geometric complexity of a part justifies the higher hourly rate of a simultaneous 5-axis machine. If a part requires more than five unique setups on a 3-axis mill, the labor-saving benefits of 5-axis “one-and-done” machining typically outweigh the equipment cost.
“High-speed 5-axis isn’t just about speed; it’s about maintaining constant chip load on geometries where 3+2 would force a tool to dwell or deflect. For thin-walled Titanium Machining, this is the difference between a pass and a scrap.”
— Sarah Jenkins, Lead Aerospace Machinist
Technical Deep Dive: Tool Deflection and Surface Integrity
In 2026, aerospace tolerances for surface roughness have tightened. We utilize the Vector-Sync Deflection Analysis to measure how tool pressure affects accuracy. In 3+2 setups, reaching deep cavities often requires long, slender tools. These tools are prone to vibration and deflection because they cannot easily adjust their orientation during the cut.
Simultaneous 5-axis machining allows the spindle to tilt, keeping the tool shorter and more rigid. This spindle orientation ensures the tool remains perpendicular to the cutting surface. The result is a significant reduction in geometric accuracy errors and a superior surface finish on materials like Inconel and specialized alloys.
- Vibration Patterns: 5-axis movement dampens harmonic resonance by constantly changing the contact angle.
- Tool Life: Continuous motion prevents “rubbing,” which extends the life of expensive carbide cutters.
- CAD/CAM Integration: Advanced 2026 software now automates toolpath optimization to prevent collisions in real-time.
Procurement Analysis: Setup Time vs. Hourly Rates
Procurement engineers often focus on hourly machine rates. While a 5-axis mill costs more per hour than a 3-axis or 3+2 setup, the total cost per part frequently drops when considering workpiece setup time. Every time a human operator touches a part to re-fixture it, the risk of “stack-up error” increases.
| Metric | 3+2 Positional | Simultaneous 5-Axis |
|---|---|---|
| Hourly Rate | Lower ($$) | Higher ($$$) |
| Setup Complexity | High (Multiple fixtures) | Low (Single fixture) |
| Geometric Accuracy | Standard GD&T | Extreme Precision |
Our Precision Milling Capabilities prioritize the “one-and-done” philosophy. By eliminating four out of five setups, we reduce labor costs by up to 40% on complex Aerospace CNC Machining Services.
Identifying ‘Fake 5-Axis’ and Kinematic Reality

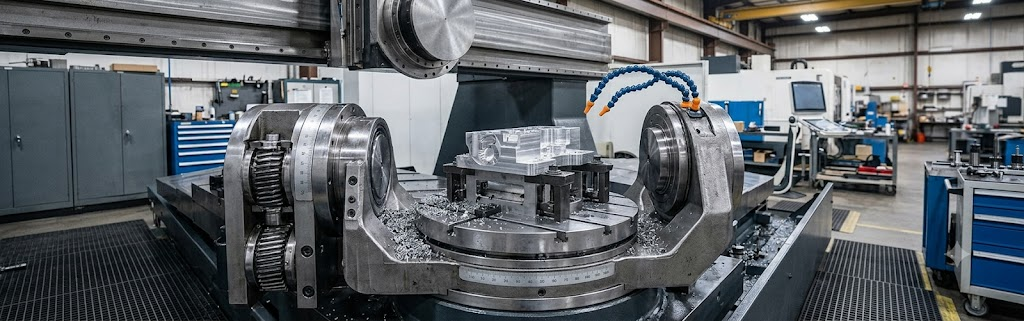

Not all “5-axis” machines are created equal. Some shops use a rotary table mounted on a standard 3-axis mill. While this provides 5-axis positioning (3+2), it lacks the kinematics required for simultaneous movement. If your part has curved impellers or complex cooling channels, 3+2 will leave visible “witness marks” where the tool stops and starts.

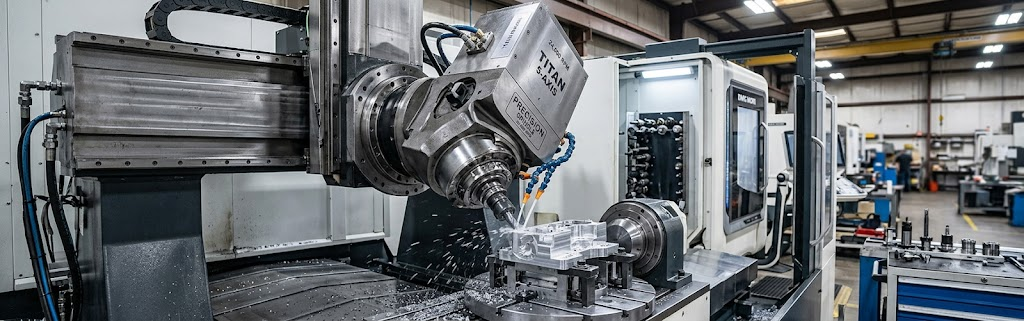

True 5-axis machines utilize a integrated trunnion or a swivel-head design. This allows for continuous movement, ensuring the tool never stops moving across the surface. When reviewing suppliers, ask for their ISO 9001 certification records regarding machine calibration to ensure they can handle the dynamic requirements of 5-axis toolpaths.
Case Study: Material Yield in Aerospace Brackets
We recently analyzed the production of a structural aerospace bracket made from 7075 Aluminum. Originally, the part was produced using 3+2 machining across four setups. The transition to simultaneous 5-axis yielded the following results:
- Material Yield Improvement: 15% reduction in raw material waste due to more aggressive nesting and better tool access.
- Cycle Time: Reduced from 140 minutes to 85 minutes per unit.
- Scrap Rate: Dropped from 4% to 0.5% by eliminating re-fixturing errors.
This data proves that for high-value materials, the machine’s hourly rate is often the least significant factor in the total cost equation. Subtractive manufacturing efficiency depends on the intelligence of the path, not just the speed of the spindle.
2026 AI-Driven Predictive Maintenance
The complexity of 5-axis machines used to mean higher risk of downtime. However, in 2026, we have integrated AI in manufacturing to monitor spindle harmonics and thermal expansion in real-time. This predictive maintenance ensures that we identify potential failures before they occur.
For procurement, this means supply chain reliability. You can commit to tight aerospace launch windows knowing that our high-complexity milling centers are managed by digital twins that predict tool wear and machine health with 98% accuracy.
Frequently Asked Questions
Does 5-axis machining improve GD&T tolerances?
Yes. By machining multiple faces in a single setup, you eliminate the “tolerance stack-up” that occurs when moving a part between fixtures. This is critical for meeting GD&T requirements for hole-to-hole true position.
Is 3+2 machining ever better than 5-axis?
Yes. For heavy material removal (roughing) on prismatic parts, 3+2 is often superior. Because the rotary axes are locked, the machine is more rigid, allowing for deeper cuts and higher feed rates without chatter.
What CAM software is best for 5-axis?
We utilize top-tier platforms like Mastercam and Hypermill, which provide the complex algorithms needed for multi-axis machining and collision avoidance.
