Multi-Axis Mill-Turn CNC Services: Precision Machining
Multi-Axis Mill-Turn CNC Services for Complex Parts
In the high-stakes world of precision engineering, the gap between a blueprint and a finished part often involves costly delays and manual handling. Multi-axis mill-turn CNC services bridge this gap by merging the rotational power of a lathe with the versatile precision of a milling center.
At Tyneen, we specialize in high-complexity geometries that traditional shops struggle to execute. By utilizing mill-turn CNC technology, we provide a streamlined path from raw material to a finished, high-tolerance component.
What is Multi-Axis Mill-Turn Machining?
Multi-axis mill-turn machining integrates CNC turning and milling into a single setup, utilizing live tooling and sub-spindles to complete complex geometries. This “done-in-one” approach eliminates fixture errors and reduces lead times by up to 40% compared to traditional sequential machining.
Definition: A live tooling lathe is a CNC turning center equipped with powered tool turrets that can perform milling, drilling, and tapping operations while the workpiece is held in the spindle.
Traditional lathes are limited to cylindrical shapes. However, modern multi-axis turning centers add Y-axis and B-axis movements. This allows for off-center drilling and complex contouring that was once only possible on a 5-axis mill.
The Efficiency of Single-Setup Machining
Moving a part between three different machines introduces three opportunities for alignment errors. We solve this through single-setup machining. When the part never leaves the chuck, the relationship between every hole, slot, and turned diameter remains perfect.
- Eliminated Fixture Costs: No need for specialized jigs for secondary milling operations.
- Reduced Labor: Fewer manual interventions mean lower costs for the end user.
- Superior GD&T: Maintaining a single datum point ensures Geometric Dimensioning and Tolerancing (GD&T) remains within ultra-tight specs.
Our data indicates that complex turned parts produced via mill-turn centers show a 22% improvement in concentricity compared to parts moved across multiple workstations.
Advanced Capabilities: Live Tooling and Dual-Spindle Lathes

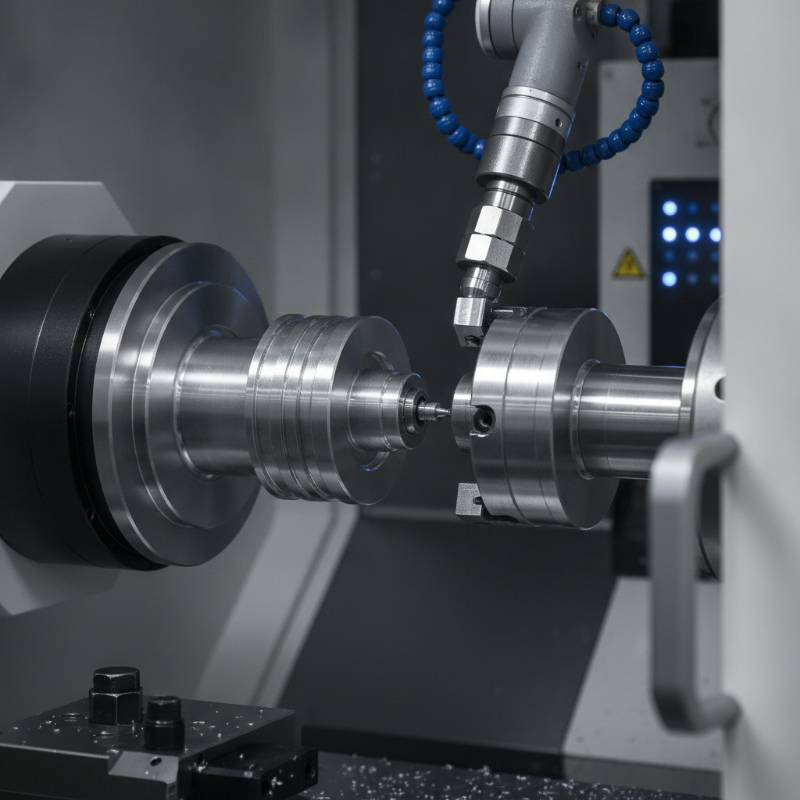

We push the boundaries of precision engineering by utilizing dual-spindle configurations. A sub-spindle transfer allows the machine to grab the part and finish the “back side” without a human ever touching it.
B-Axis and Y-Axis Versatility
Standard lathes move in X and Z. Our multi-axis mill-turn CNC services utilize the Y-axis for off-center milling and the B-axis for angular features. This is critical for Aerospace Manufacturing Solutions where weight-reduction pockets often sit at odd angles.
By synchronizing the sub-spindle, we achieve cycle time optimization that allows for 24/7 “lights-out” manufacturing on high-volume runs.
The ‘Sync-Turn’ 5-Point DFM Framework
To ensure every project is optimized for cost and quality, we developed the Sync-Turn 5-Point DFM Framework. This proprietary methodology is applied to every Precision CNC Machining Services project we undertake.
- Geometry Analysis: Identifying features that can be consolidated into a single mill-turn operation.
- Tooling Optimization: Selecting live tooling paths that minimize tool changes and vibration.
- Material Stability Check: Assessing thermal expansion and stress relief during aggressive turning.
- Cycle Time Reduction: Programming sub-spindle synchronization to perform simultaneous machining on both ends of the part.
- Quality Verification: Integrating in-process probing to validate dimensions before the part leaves the machine.
Industry Solutions: Aerospace, Medical, and Defense
Our mill-turn capabilities are specifically tailored for sectors where failure is not an option. We provide Aerospace Manufacturing Solutions that meet the rigorous demands of flight-critical hardware.
For the healthcare sector, our Medical Device Component Production focuses on orthopedic implants and surgical instruments. These parts often require the extreme surface roughness control and complex threading that only a live tooling lathe can provide.
Case Study: Aerospace Component Weight Reduction
Challenge: A client needed a landing gear valve body with internal cross-holes and weight-reduction scalloping.
Solution: Using our Sync-Turn Framework, we moved the part from a 3-machine process to a single mill-turn setup.
Result: 30% reduction in overall weight and a 15% reduction in unit cost due to eliminated secondary fixtures.
Material Expertise: From Titanium to Inconel
Working with exotic alloys requires more than just a fast machine; it requires specialized CAD/CAM programming and rigid workholding. We maintain tight tolerance machining standards across a wide spectrum of materials.
| Material | Common Applications | Typical Tolerance |
|---|---|---|
| Titanium (Gr 5) | Aerospace Fasteners, Implants | +/- 0.0002″ |
| Inconel 718 | Turbine Components | +/- 0.0005″ |
| Stainless 316L | Medical Instruments | +/- 0.0001″ |
| Aluminum 7075 | Structural Frames | +/- 0.0005″ |
Our facility is equipped with bar feeding automation, allowing us to maintain high throughput even with difficult-to-machine materials like 17-4 PH Stainless Steel.
Frequently Asked Questions
What is the difference between Swiss turning and mill-turn?
Swiss-style machining is ideal for long, slender parts with small diameters (typically under 1.25 inches). Standard mill-turn CNC centers are better suited for larger, chunkier components that require higher horsepower for aggressive milling.
What are the typical lead times for multi-axis projects?
Standard lead times range from 2 to 4 weeks depending on material availability. However, because we utilize single-setup machining, we can often expedite prototypes in as little as 5 business days.
Do you provide AS9100 certification for parts?
Yes. All parts produced under our multi-axis mill-turn CNC services are subject to our ISO 9001:2015 and AS9100 Rev D quality management systems. We provide full material traceability and inspection reports as standard.
Ready to Optimize Your Complex Parts?
Partner with Tyneen for 2026-grade precision. Let our engineering team review your CAD files for Sync-Turn optimization.
